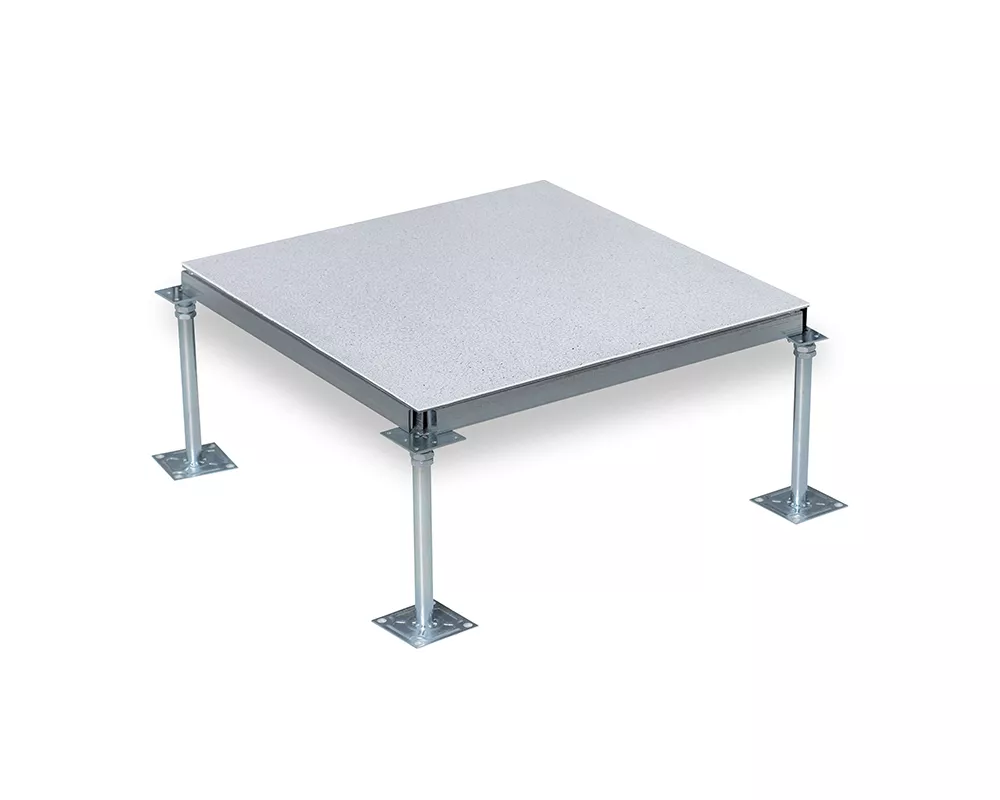

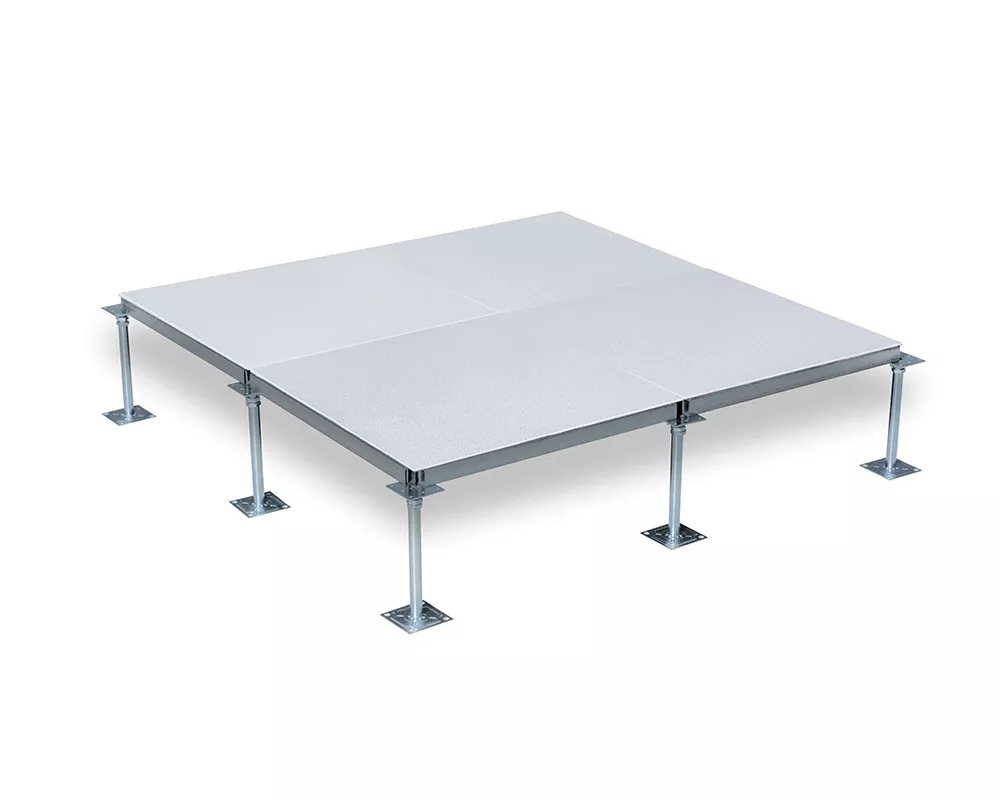

CONDUCTIVE STEEL PVC RAISED ACCESS FLOORING

Conductive steel PVC raised access flooring is a specialized type of flooring system that is designed to prevent the buildup of static electricity, making it ideal for use in areas with sensitive electronic equipment. This flooring is made from high-quality steel panels with a conductive PVC covering, providing excellent durability and strength. The conductive properties of this flooring allow for the dissipation of electrical charges, providing an additional layer of protection for electronic equipment. It is often used in data centers, laboratories, and other areas where electrostatic discharge (ESD) is a concern.

In addition to its protective capabilities, this flooring is also easy to install, customize, and maintain, making it a cost-effective and practical choice for many facilities.These panels are non-combustible and adhere to Dawn standards as tested by CISCA.

15 People watching this product now!

Description

RAISED ACCESS FLOORING

FINISH OPTIONS

LINE3
  Factory Laminated Conductive Homogeneous PVC Finish
Physical Properties Chemical Properties (Anti-Corrosion)
   Item Index Item Index
   Length x Width 600 x 600mm, 610 x 610mm HCL Pass
   Thickness 2.0mm, 2.5mm, 3.0mm Alcohol Pass
   System Resistance 104 – 106Ω Acetone Pass
   Decay Time 1000V to 100V (Less than 2 secs) NaOH Aqueous Pass
   Rate of Size Change at Heating Less than 0.20% Gasoline Pass
   Starting Voltage Less than 100V Normal Detergent Pass
   Wearing Less than 0.02g/cm2
   Combustion Property Less than 10 secs (FV-0)

RAISED ACCESS FLOORING

SYSTEM PERFORMANCE CRITERIA

LINE3
System performance criteria are the most important to consider because they represent the performance in a typical installation.Raised access floor only criteria such as concentrated load is often used to specify floor systems however, the test is not representative of an actual installation because it is performed with the raised access floor testing blocks, not actual understructure.
  System Performance Criteria
System Type Static Loads Rolling Loads
   Panel Panel Size Concentrated
Load		 Safety Factor
(min.2.0)		 Ultimated load 10 Passes 10,000 Passes
   FS800 600x600x35mm
610x610x35mm		 368kg/800lbs Pass 736kg/1600lbs 318kg
700lbs		 275kg
600lbs
   FS1000 600x600x35mm
610x610x35mm		  454kg/1000lbs Pass 909kg/2000lbs 368kg
800lbs		 318kg
700lbs
   FS1250 600x600x35mm
610x610x35mm		 568kg/1250lbs Pass 1136kg/2500lbs 454kg
1000lbs		 368kg
800lbs
   FS1500 600x600x35mm
610x610x35mm		 681kg/1500lbs Pass 1363kg/3000lbs 568kg
1250lbs		 454kg
1000lbs
   FS2000 600x600x35mm
610x610x35mm		 909kg/2000lbs Pass 1818kg/4000lbs 681kg
1500lbs		 568kg
1250lbs
   FS2500 600x600x35mm
610x610x35mm		 1136kg/2500lbs Pass 2272kg/5000lbs 909kg
2000lbs		 681kg
1500lbs
   FS3000 600x600x35mm
610x610x35mm		 1363kg/3000lbs Pass 2726kg/6000lbs 1136kg
2500lbs		 909kg
2000lbs
*A tests are performed using CISCA’s Recommend Test Procedures for Access Floors with the exception of Design Load
1. Raised access floor design load is tested using CISCA Concentrated Load test method on actual understructure instead of steel blocks. Design load is determined by taking the lesser value of ultimate load divided by two or the point at which permanent damage begins to occur (yield point).
2. Raised access floor safety factor is the multiple of Design load to the Ultimate Load. International standards and Dawn Modular Floor recommend’ a minium of 2.

RAISED ACCESS FLOORING

UNDERSTRUCTURE OPTIONS

LINE3
  • Standard-FH-Pedestal-(OD22
    Standard FH Pedestal
    (OD22.3×1.5mm tube)
  • Heavy-Duty-FH-Pedestal (OD32x1
    Heavy Duty FH Pedestal
    (OD32x1.5mm tube)
  • Extra-Heavy-Duty-FH-Pedestal (OD45x1
    Extra Heavy Duty FH Pedestal
    (OD45x1.5mm tube)
  • Seismic-FH-Pedestal (OD60x1
    Seismic FH Pedestal
    (OD60x1.5mm tube)
  • Standard-Stringer (1
    Standard Stringer
    (1.0mm / 1.8mm thickness)

RAISED ACCESS FLOORING

INSTALLATION

LINE3
The finished raised access floor wil be rigid, free from vibration and rocking panels within a 3mm level over the entire space. Panels will be accurately cut to fit around all permanent features. All whole panels will be completely interchangeable allowing for any future changes. The raised access foor will maintain these origina conditions when sufficient panels have been removed for normal underfloor access.

RAISED ACCESS FLOORING

BENEFITS
LINE3
● Electrostatic Discharge Protection: Conductive steel PVC raised access flooring helps to prevent the buildup of static electricity and safely dissipate any electrical charges. This provides superior protection against electrostatic discharge (ESD), making it ideal for areas with sensitive electronic equipment.
● Chemical Resistance: The PVC covering of conductive steel PVC raised access flooring provides excellent chemical resistance, making it resistant to many common chemicals found in data centers.
● Improved Aesthetics: Conductive steel PVC raised access flooring is available in a range of finishes and colors, allowing for customizable design options that can enhance the overall aesthetics of the data center.
● Easy Maintenance: The PVC covering of conductive steel PVC raised access flooring is easy to clean and maintain, providing long-lasting performance with minimal effort.
● Enhanced Durability: The combination of steel and PVC materials in conductive steel PVC raised access flooring provides excellent durability and long-term performance, even in high-traffic areas.
● Enhanced Safety: Conductive steel PVC raised access flooring is often made from fire-resistant materials, providing an additional layer of safety and protection for the data center.
● Excellent Load Capacity: The steel panels of conductive steel PVC raised access flooring have a high load capacity, making it suitable for heavy equipment and machinery found in data centers.
